Unlocking the 4 Core Functions of C&I Energy Storage
Strategic Scenarios and Advanced Liquid Cooling Engineering
Commercial & Industrial (C&I) energy storage is a strategic asset designed to solve critical energy challenges. From factories to office buildings, the successful deployment of storage depends on how well it fulfills four core functions. Let’s explore these scenarios using TAICO’s advanced engineering as our benchmark.
1. Peak Shaving and Valley Filling
By charging when electricity prices are low (Valley) and discharging when prices are high (Peak), businesses can arbitrage price differences and significantly reduce demand charges.

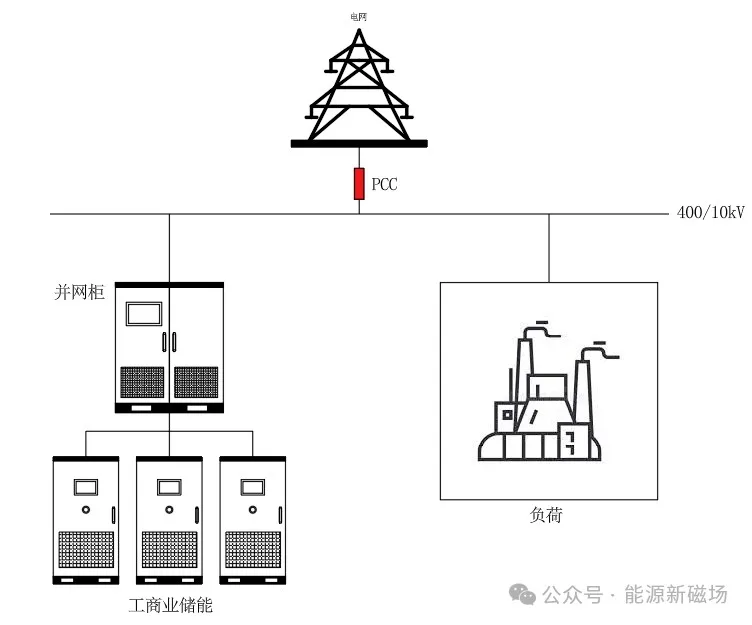

[Scenario: Peak Shaving in Industrial Parks]
The TAICO Edge: High-frequency cycling requires world-class thermal management. The TAICO TK E-CUBE L200 uses liquid cooling to maintain cell temperature gradients at ≤3°C, extending battery life by 20% in high-arbitrage scenarios.
2. Postponing Transformer Expansion
When new production lines or EV chargers exceed grid capacity, upgrading a transformer is a multi-million dollar headache. Energy storage acts as "virtual expansion," supplementing the grid during peak loads.

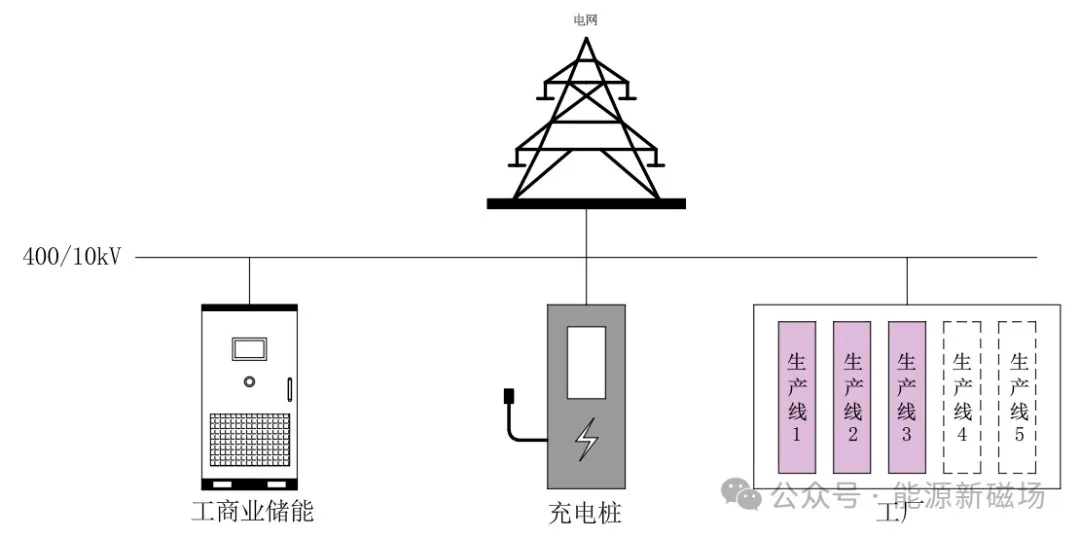

[Scenario: Virtual Expansion for New Production Lines]
The TAICO Edge: The TK E-CUBE L200 packs 215kWh into a compact footprint, allowing for seamless integration into existing facilities where space for new transformers is non-existent.
3. Emergency Backup Power (UPS Function)
For critical loads like data centers or hospitals, a power outage is catastrophic. Seamless switching via STS (Static Transfer Switch) ensures zero downtime for important loads.
[Scenario: UPS Function with STS for Critical Loads]
The TAICO Edge: Reliability is the final line of defense. The L200's liquid cooling ensures the system stays in prime condition, ready to take over full load instantly with multi-layer fire protection (Perfluorohexanone + Aerosol).
4. Green Energy Self-Consumption
Capture excess rooftop solar and discharge it when needed. This increases self-consumption rates and protects the local grid from voltage fluctuations caused by solar over-generation.

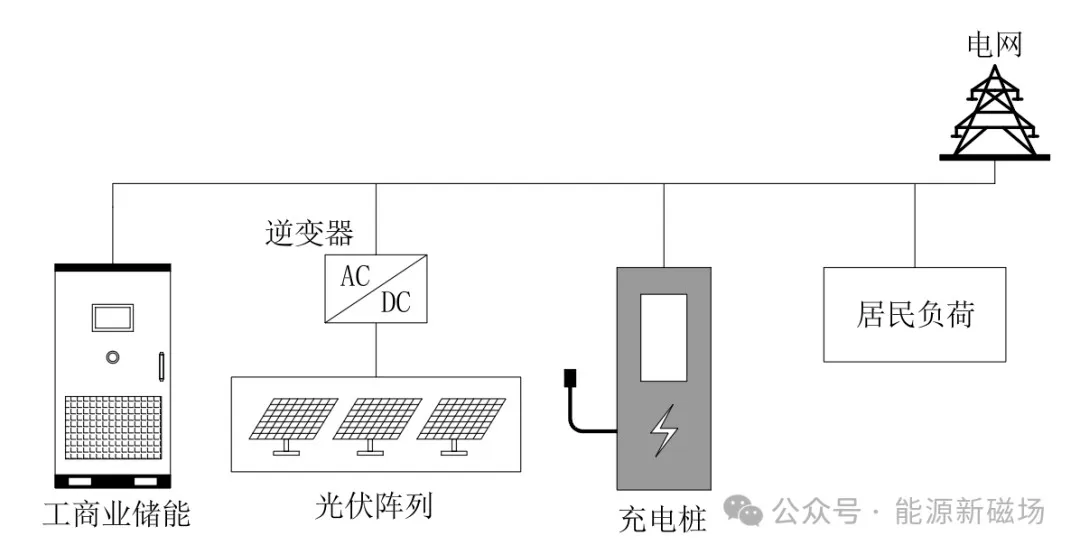

[Scenario: Integrated Solar + Storage + Charging Microgrid]
The Solution: TAICO TK E-CUBE L200 Liquid Cooling ESS
To fulfill these functions with maximum ROI, you need a system built for stability. The TK E-CUBE L200 combines high-density 314Ah cells with industry-leading thermal control.
Advanced Thermal Engineering
By using a dedicated liquid cooling plate, the L200 ensures a system round-trip efficiency of 98%. This efficiency ensures that every watt of energy harvested from peak-shaving or solar is utilized effectively.
